Operating voltage: 4.5~5.5V.

ZTV initial origin voltage :1.3+/-0.15V.

The variation of 50 Kgf tension output voltage is ┐U:2.0+/-0.15V (crank

length 0.17m, disk 32 teeth).

Measuring range: 1~50kg.f

Torque signal output :1.5K┯and 1uf filter output (Note: 6PIN terminal 1.5K┯and 1uf filter output; There’s a bunch of 200┯ resistances in torque

output internal).

Forward rotation of the central axis will have 24PCS pulse signal.

Duty cycle D of pulse is 56%

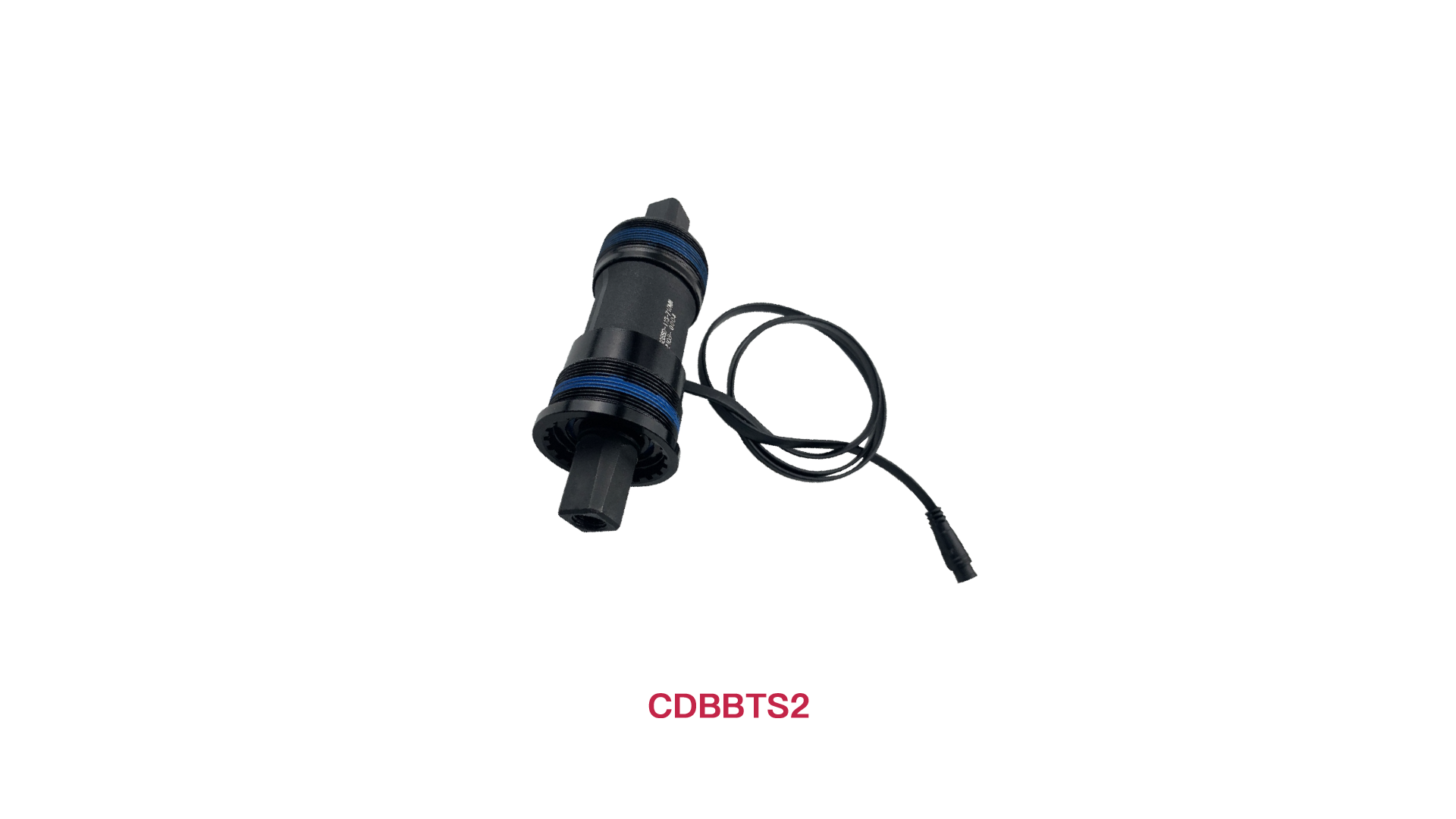

We can offer you CD_Diagnostic_1 to detect this torque sensor’s electrical properties during QC on incoming material or for after sale service
